AGM Rattler TS50-640 Thermal Imaging Rifle Scope 12 Micron, 640x512 (50 Hz), 50mm lens

AGM Rattler TS50-640 Thermal Imaging Rifle Scope 12 Micron, 640x512 (50 Hz), 50mm lens

AGM Global Vision
SKU:
810027778673
$3,995.00
(No reviews yet)
Current Stock:

Out of stock

Out of Stock
Description
Characteristics

Detector type: 12μm, Uncooled, 50 Hz

Refresh rate: 50 Hz

Resolution: 640x512

FOV: 8.8° × 7.0°

Package Includes
  • Mount
  • USB Cable
  • Lens Tissue
  • User Manual
  • Carrying Bag
  • CR 123 Batteries
Downloads
Data Sheet
User Manual

Description And features

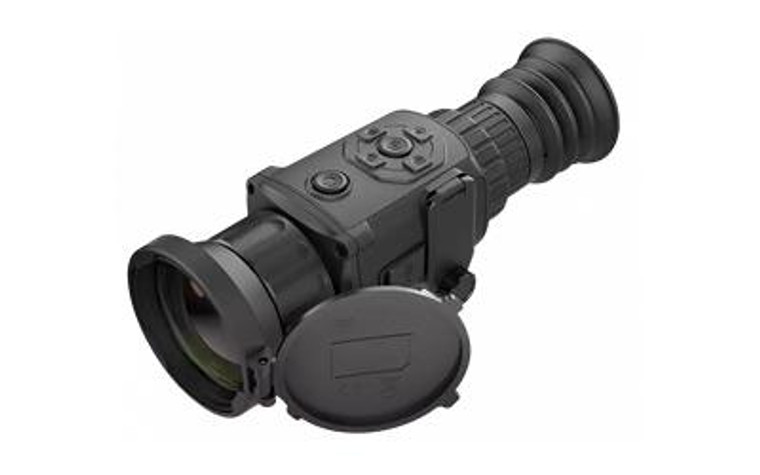

The Rattler TS50-640 is a perfect addition to any hunter's arsenal. This specific Rattler model pairs a 50mm germanium lens with an upgraded sub-35mk 640x512 thermal detector and a 1024x768 OLED display, which combine to provide an eye-popping detection range of 2500 yards. The combination of the 12 micron sensor with the 50mm lens also places the base magnification for this unit right in the sweet spot in terms of flexibility for both hog and predator hunters, at 2.5X. This magnification level isn’t too high and restrictive on the hunter’s field of view and is simultaneously just high enough to ensure there isn’t too much resolution degradation when digitally zooming to 5X and 10X. The Rattler series of thermal scopes were specifically designed to be compact and lightweight, as this not only ensures its small footprint can be used on a multitude of shooting platforms, but also gives the series secondary use as a thermal monocular as well.

This unit also comes packed with all the features that many Rattler users have come to expect, which include: built-in recording and picture capture capabilities, Wi-Fi hotspot, 8X digital zoom, Picture-in-picture, AGM Connect app compatibility for storing and sharing images and videos, one-shot digital zeroing process, 4.5 hours of battery life on (2) CR123 batteries, external power capability through the unit’s USB-C plug and a high-quality American Defense Manufacturing quick detach mount which quickly allows users to seamlessly shift from riflescope to monocular quickly and easily.



  • 640×512 thermal resolution
  • 12 μm, 35 mK NETD high sensitivity detector (NETD <35mK)
  • Fast 50Hz imaging
  • 1024×768 resolution, 0.39-inch OLED display
  • 2.5x optical magnification
  • 1x, 2x, 4x, 8x digital zoom
  • Digital image processing technology
  • Video recording and snapshot, built-in EMMC (16 GB)
  • Various reticle types and colors
  • Stadiametric rangefinder
  • Adjustable color palettes
  • Wi-Fi data transmission
  • Standby mode
  • Waterproof, shockproof
  • Up to 4.5 hours continuous working
  • External power supply capability
  • 5-Year warranty

Specifications

Palettes: Black Hot, White Hot, Red Hot, Fusion

Reticle: 5 types, 4 colors, on/off

Drop Test Height: 1.5m (4.9 feet)

Boresight Adjustment: Digital Controlled

Boresight Increment: 0.15 mil / 0.52 MOA

Distance Measurement: Yes (Stadiametric Rangefinder)

Scene Mode: Jungle, Recognition

Picture In Picture Mode (PIP): Yes (2× Zoom)

Video Recording: Yes

Defective Pixels Correction (DPC): Yes

Uniformity Correction: Auto, Manual, External Correction

Digital Magnification: 2.5x - 20x

Detector type: 12μm, Uncooled, 50 Hz

Standby Mode: Yes

Resolution: 640 × 512

Detection Range (6' object): 2,500m/yd

Lens system: 50 mm; F/1.0

Field of view (H × X): 8.8° × 7.0°

Digital zoom: 1×, 2×, 4×, 8×

Eye relief: 45 mm

Display: 0.39-inch, OLED, 1024×768, 50 Hz

Storage: Built-in EMMC (16 GB)

Battery Type: Two CR123 (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries

CVBS Output: Yes (via USB)

Battery Life (Operating): Up to 4.5 hr

External power supply: 5 VDC/2 A, USB Type-C interface

Operating Temperature Range: -20°C to +55°C (-4°F to +131°F)

Degree of Protection: IP67

Weight: 605 g (1.33 lb)

Overall Dimensions: 200 x 73 x 84 mm (7.8 × 2.9 × 3.3 in)

Package Includes: Thermal Imaging Rifle Scope, Mount, USB Cable, Lens Cloth, Manual

Magnification: 2.5×
