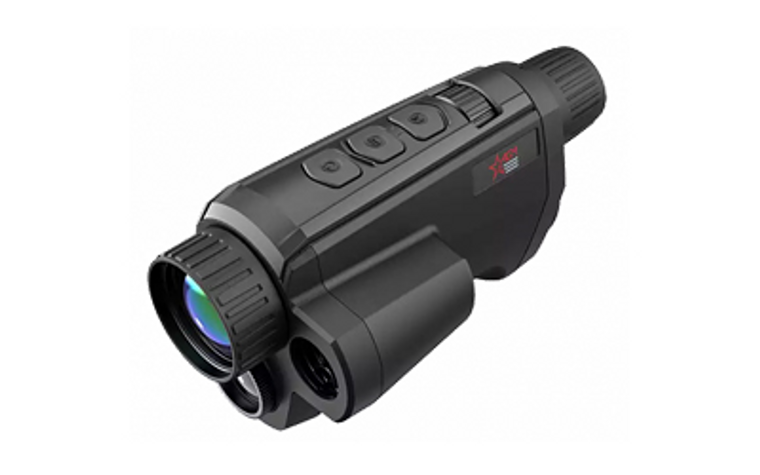

AGM Fuzion LRF TM35-640 Thermal Monocular

AGM Fuzion LRF TM35-640 Thermal Monocular

AGM Global Vision
SKU:
810027779564
$2,895.00
(No reviews yet)
Current Stock:

Out of stock

Out of Stock
Description
Characteristics

Detector type: 12 μm VOx Uncooled Focal Plane Arrays

Refresh rate: 50 Hz

Resolution: 640x512

FOV: 12.5° × 10°

Package Includes
  • Rubber eyepiece
  • 18650 Rechargeable Battery 2x
  • USB Cable
  • Battery Charger
  • Power Adapter
  • Lens Cloth
  • User Manual
Downloads
Data Sheet
User Manual

Description And features

The AGM Fuzion LRF TM35-640 Thermal & Digital Day/Night Vision monocular is some of the most technologically advanced and feature-packed optics in the world. The primary engine behind this monocular lies within the main thermal viewing channel, with its high-sensitivity 12 micron 640x512 thermal detector. This sensor from AGM will ensure that not only are human-sized heat signatures detectable at up to 1 mile (1750m), but also that foliage and other background imagery will be crisp and detailed in closer distances/ranges. Unlike other thermal monoculars on the market, the Fuzion LRF also come outfitted with a digital night vision channel as well, which is great for aiding in recognition of targets detected by the thermal channel. The built-in 600m laser rangefinder simply takes the Fuzion LRF to another level, and this is without even mentioning its 16GB of internal memory and Wi-Fi compatibility.

The Fuzion LRF also comes packed with numerous software improvements, and many features that have become commonplace within the AGM thermal product assortment: high-sensitivity thermal detector, 35mm Germanium lens with a 1.0 aperture, 1920x1080 ultra-low light CMOS sensor, various viewing modes, including fusion imaging and multiple color palettes, 2X base magnification with 8X digital zoom, picture-in-picture mode, built-in laser rangefinder,  up to 5 hours of battery life on one removable, rechargeable 18650 battery, USB Type-C port for external power capabilities, IP67 waterproof rating. The package includes a long-range IR illuminator, wrist strap, charger, and of course AGM’s 5 Year Transferable Warranty!



  • Bi-spectrum image fusion and object highlight
  • Detail enhancement and target recognition
  • Selection of thermal view channel, visible light channel, or both them combined
  • 12 μm, 35 mK NETD high sensitivity thermal detector
  • Fast 50Hz imaging
  • 1x, 2x, 4x, 8x digital zoom
  • Digital image processing technology
  • Ultra-low illumination optical channel
  • 1920×1080 Optical resolution
  • Eye-safe laser rangefinder
  • 1024×768 resolution, 0.39-inch OLED display
  • Video recording and snapshot, built-in EMMC (16 GB)
  • Wi-Fi hotspot
  • Standby mode
  • Up to 5 hours continuous running
  • Waterproof
  • 5-Year Warranty

Specifications

Palettes: Black Hot, White Hot, Red Hot, Fusion, Visible, Image Fusion

Working Temperature: -20°C to 55°C (-4°F to 131°F)

Dimension (LxWxH): 168 × 87 × 74 mm (6.6 × 3.4 × 2.9 in)

Distance Measurement: Yes (Laser Rangefinder: up to 600 m, ±1 m accuracy)

Scene Mode: Jungle, Recognition

Hotspot: Yes

Observation Distance: 1750m/yd

Detector type: 12 μm VOx Uncooled Focal Plane Arrays

Response Waveband: 8 μm to 14 μm

Optical Image Sensor: 1/2” Progressive Scan CMOS, 1920×1080@25fps

FFC (Flat Field Correction): Auto, Manual, External Correction

Highest Temperature Spot Tracking: Yes

Standby Mode: Yes

Refresh rate: 50 Hz

Aperture: F1.0

Resolution: 640 × 512

Laser Wavelength: 905 nm

Optical magnification: 2x – 16x

Lens (focal length): Thermal Lens Focal Length - 25mm Optical Module Lens Focal Length - 22mm

Power: 5 VDC/2 A, USB Type-C interface Supports external power supply

Field of view (H × X): 12.5° × 10°

Digital zoom: 1x, 2x, 4x, 8x

Monitor: 1024x768, 0.39 inch, OLED, 50Hz

Storage: Built-in 16 GB EMMC

Record Video: On-board video recording

Capture Snapshot: Yes

Battery Type: One 18650 rechargeable battery (removable)

CVBS Output: Yes (via USB)

Battery Operating Time: Up to 5 hours continuous running (@25°C, WiFi and CVBS off) Up to 3 hours continuous running (@25°C, WiFi and CVBS on)

Battery Capacity Display: Yes

Weight: 520g (1.15 Ib)

Protection Level: IP67 (Waterproof)
