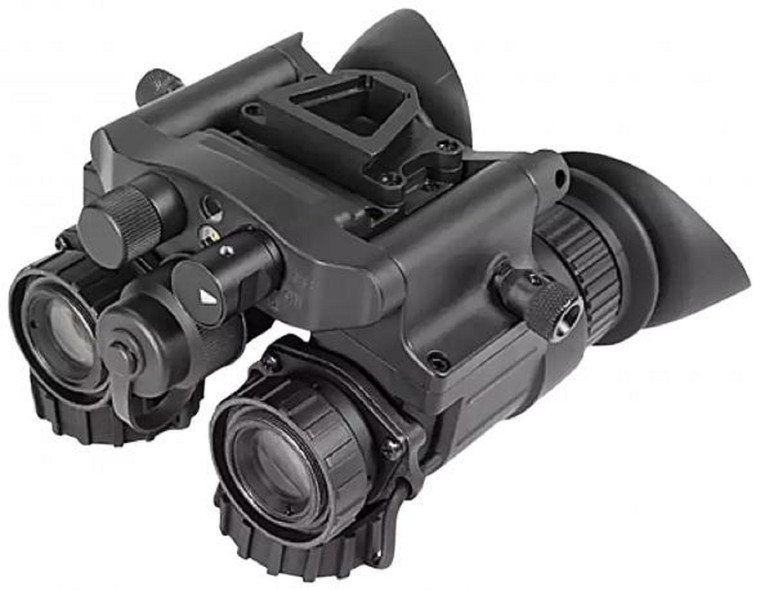

AGM Global Night Vision Goggles NVG-50 3APW

AGM Global Night Vision Goggles NVG-50 3APW

AGM Global Vision
SKU:
810027778390
$8,495.00
(No reviews yet)
Current Stock:

Out of stock

Out of Stock
Description
Characteristics

Image Intensifier Tube: Gen 3 Auto-Gated "White Phosphor 3APW"

Magnification: 1x (3x optional)

Lens System: 19 mm; F/1.26

FOV: 51°

Package Includes
  • NVG Interface Shoe
  • Bayonet/Horn Interface Shoe
  • Demist Shield (2)
  • Sacrificial Window
  • Packing Box
  • Soft Carrying Case
  • Lens Cloth
  • Battery Adapter
  • User Manual
Downloads
Data Sheet
User Manual

Description And features

The AGM NVG-50 is a dual-channel night vision system. The NVG-50 uses optics which give it a wider 51°
field of view with the tradeoff of shorter eye-relief. The NVG is made of a compact composite housing
for durability, and features advanced multi-coated optics. The device can be outfitted with either a Gen
2+ or Gen 3 high-performance image intensifier tube (IIT). The bright light cut-off feature ensures that
the high-quality photocathode tube is protected. The NVG is also equipped with Manual Gain Control,
which adjusts the image brightness, providing the highest possible image quality even in changing light
conditions. Operating from a single AA alkaline battery or CR123A battery, the NVG can run up to 20
hours. Also equipped with an integral infrared illuminator for reading in the dark.
For hands-free use of the NVG, it can be installed to many various mounts, such as the AN/PVS-7D, AN/PVS-14, AN/PVS-7A/C, AN/PVS-15, and AN/PVS-18 mounts, or to the mounts with mini-rail interface.

NVG Interface Shoe (preinstalled) is used for installing the NVG to a either standard dovetail type headset and helmet mount.
Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.
NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.
Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount



Warning: California's Proposition 65

  • Redundant dual-tube design
  • True stereoscopic vision
  • Wide 51° field of view
  • Lightweight & compact
  • Head or helmet mountable for hands-free operation
  • Bright light cut-off
  • Ergonomic, simple, easy to operate controls
  • Built-in Infrared illuminator and flood lens
  • Utilizes single CR123A lithium or AA battery
  • 3-Year warranty

Specifications

Image Intensifier Tube: Gen 3 Auto-Gated "White Phosphor 3APW"

Resolution: 64-72 lp/mm

Field of view cleanness by zone: Gen 3 IIT 3APW is offered with high quality and practically no visible spots in Zone 1.

Magnification: 1x (3x optional)

Lens System: 19 mm; F/1.26

FOV: 51°

Focus Range: 0.25 m to infinity

Eye Relief: 17 mm

Diopter Adjustment: -6 to +2 dpt

Led Indicators: Low battery; IR on; Excessive light conditions

Infrared Illuminator: Yes

Manual Gain Control: Yes

Bright Light Cut-Off: Yes

Automatic Shut-Off System: Yes

Battery Type: One CR123A (3V) or AA (1.5 V)

Battery Life (Operating): Up to 20 hours at 20°C (up to 80 hrs with optional battery pack)

Operating Temperature Range: -40°C to +50°C (-40°F to +122°F)

Storage Temperature Range: -50°C to +50°C (-58°F to +122°F)

Weight: 615 g (1.35 lbs)

Overall Dimensions: 112 × 118 × 74 mm (4.4 × 4.6 × 2.9 in)
